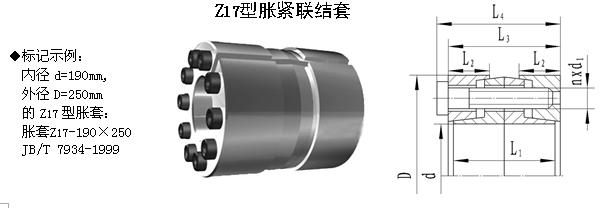

Z17型脹緊聯結套的基本尺寸和參數 (JB/T 7934—1999)
|
基本尺寸mm
|
額定負荷
|
內六角螺釘
|
脹套與軸結合面上的壓力Pf
N／mm2
|
脹套與輪轂結合面上的壓力Pf＇
N／mm2
|
重量
kg
|
|
d
|
D
|
L1
|
L2
|
L3
|
L4
|
轉矩
Mt
kN·m
|
軸向力
Ft
kN
|
d1
|
n
|
擰緊力矩MA
N·m
|
|
30
|
55
|
40
|
17
|
46
|
52
|
0.90
|
60
|
M6
|
6
|
17
|
132
|
85
|
0.5
|
|
35
|
60
|
40
|
17
|
46
|
52
|
1.25
|
71
|
M6
|
7
|
17
|
135
|
93
|
0.6
|
|
40
|
65
|
40
|
17
|
46
|
52
|
1.50
|
75
|
M6
|
8
|
17
|
124
|
90
|
0.7
|
|
45
|
75
|
48
|
20
|
56
|
64
|
2.50
|
112
|
M8
|
6
|
41
|
136
|
98
|
1.1
|
|
50
|
80
|
48
|
20
|
56
|
64
|
3.00
|
120
|
M8
|
7
|
41
|
132
|
100
|
1.2
|
|
55
|
85
|
48
|
20
|
56
|
64
|
3.80
|
138
|
M8
|
8
|
41
|
138
|
108
|
1.3
|
|
60
|
90
|
48
|
20
|
56
|
64
|
4.30
|
143
|
M8
|
8
|
41
|
127
|
102
|
1.4
|
|
65
|
95
|
48
|
20
|
56
|
64
|
5.30
|
162
|
M8
|
9
|
41
|
132
|
108
|
1.5
|
|
70
|
110
|
58
|
24
|
68
|
78
|
7.60
|
219
|
M10
|
8
|
83
|
143
|
110
|
2.6
|
|
75
|
115
|
58
|
24
|
68
|
78
|
8.20
|
219
|
M10
|
8
|
83
|
134
|
105
|
2.8
|
|
80
|
120
|
58
|
24
|
68
|
78
|
8.70
|
219
|
M10
|
8
|
83
|
125
|
101
|
2.9
|
|
85
|
125
|
58
|
24
|
68
|
78
|
10.4
|
240
|
M10
|
9
|
83
|
133
|
109
|
3.1
|
|
90
|
130
|
58
|
24
|
68
|
78
|
12.3
|
274
|
M10
|
10
|
83
|
139
|
116
|
3.2
|
|
95
|
135
|
58
|
24
|
68
|
78
|
13.0
|
274
|
M10
|
10
|
83
|
132
|
112
|
3.3
|
|
100
|
145
|
66
|
28
|
76
|
88
|
15.0
|
301
|
M12
|
8
|
145
|
121
|
98
|
4.5
|
|
110
|
155
|
66
|
28
|
76
|
88
|
18.6
|
338
|
M12
|
9
|
145
|
123
|
103
|
4.9
|
|
120
|
165
|
66
|
28
|
76
|
88
|
22.5
|
376
|
M12
|
10
|
145
|
126
|
108
|
5.3
|
|
130
|
180
|
76
|
33
|
86
|
98
|
29.3
|
451
|
M12
|
12
|
145
|
121
|
101
|
7.3
|
|
140
|
190
|
76
|
33
|
86
|
98
|
31.5
|
451
|
M12
|
12
|
145
|
112
|
95
|
7.8
|
|
150
|
200
|
76
|
33
|
86
|
98
|
39.4
|
526
|
M12
|
14
|
145
|
122
|
106
|
8.2
|
|
160
|
210
|
76
|
33
|
86
|
98
|
45.0
|
563
|
M12
|
15
|
145
|
123
|
108
|
8.7
|
|
170
|
225
|
86
|
38
|
98
|
112
|
52.5
|
619
|
M14
|
12
|
230
|
112
|
96
|
11.6
|
|
180
|
235
|
86
|
38
|
98
|
112
|
64.9
|
722
|
M14
|
14
|
230
|
124
|
107
|
12.2
|
|
190
|
250
|
102
|
46
|
114
|
126
|
78.3
|
825
|
M14
|
16
|
230
|
113
|
95
|
16.7
|
|
200
|
260
|
102
|
46
|
114
|
126
|
92.7
|
928
|
M14
|
18
|
230
|
121
|
103
|
17.4
|
|
220
|
285
|
110
|
50
|
122
|
138
|
126.0
|
1146
|
M16
|
16
|
355
|
126
|
107
|
22.3
|
|
240
|
305
|
110
|
50
|
122
|
138
|
137.5
|
1146
|
M16
|
16
|
355
|
115
|
100
|
24.1
|
|
260
|
325
|
110
|
50
|
122
|
138
|
167.6
|
1289
|
M16
|
18
|
355
|
120
|
105
|
25.8
|
注：Z17型脹緊聯結套螺釘?shù)臋C(jī)械性能等級為12.9級。
